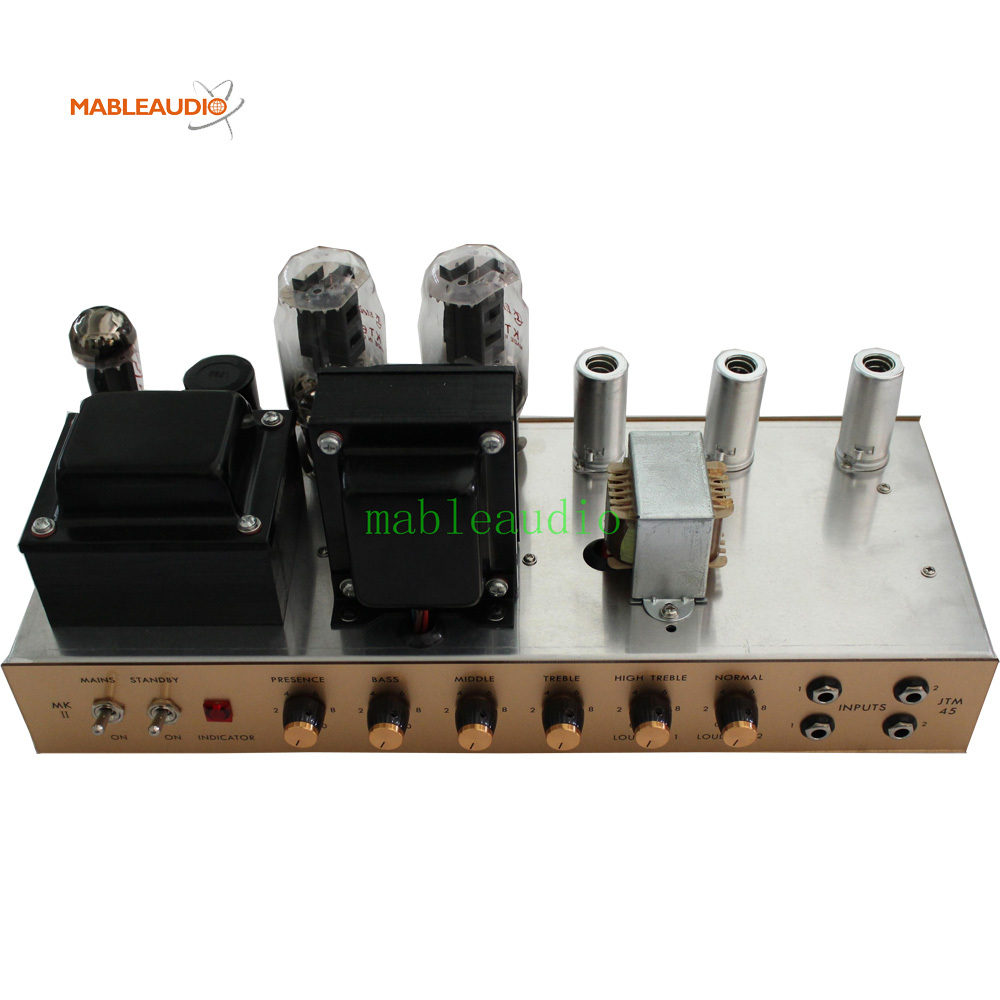

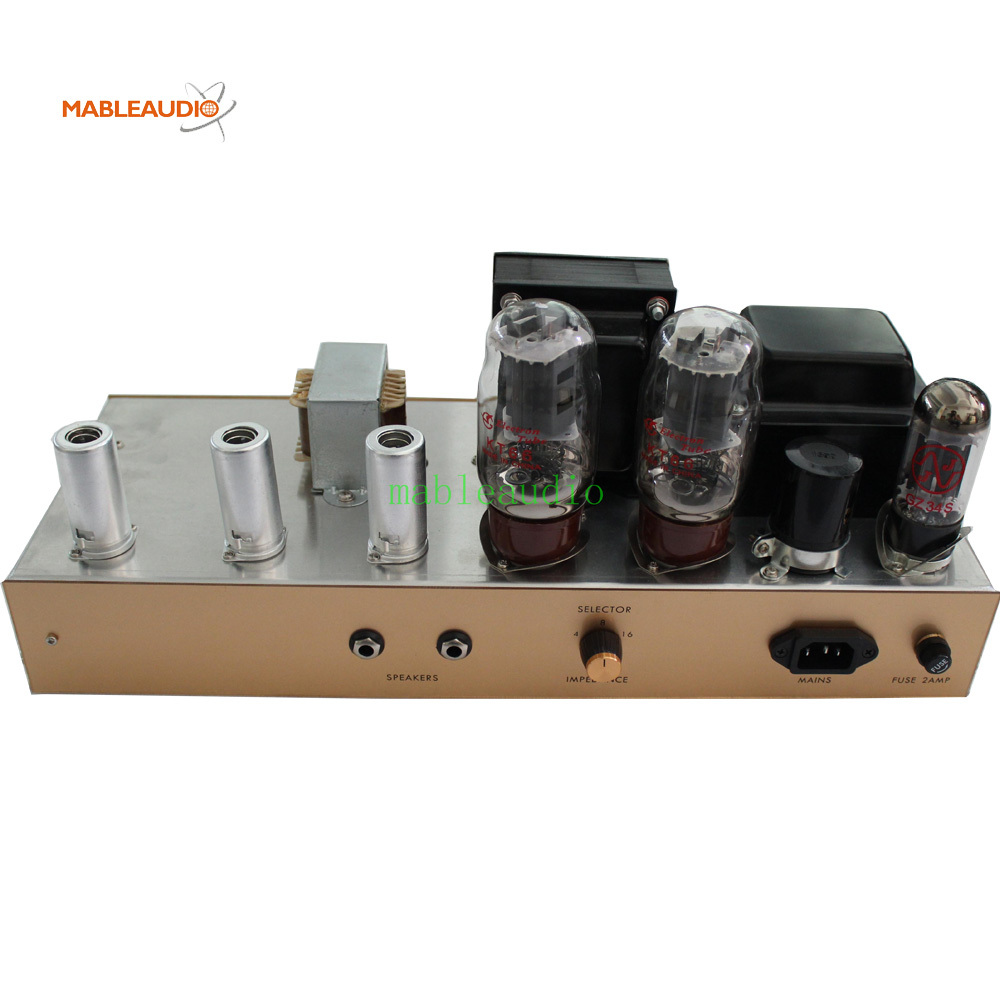

It is a hand soldered guitar amp head, based on the archetypal JTM45™ head, which was the amp that began it all back in 1962. Inside the JTM45, the valve set is three 12AX7B, with two KT66 in the power stage and a JJ GZ34s rectifier.

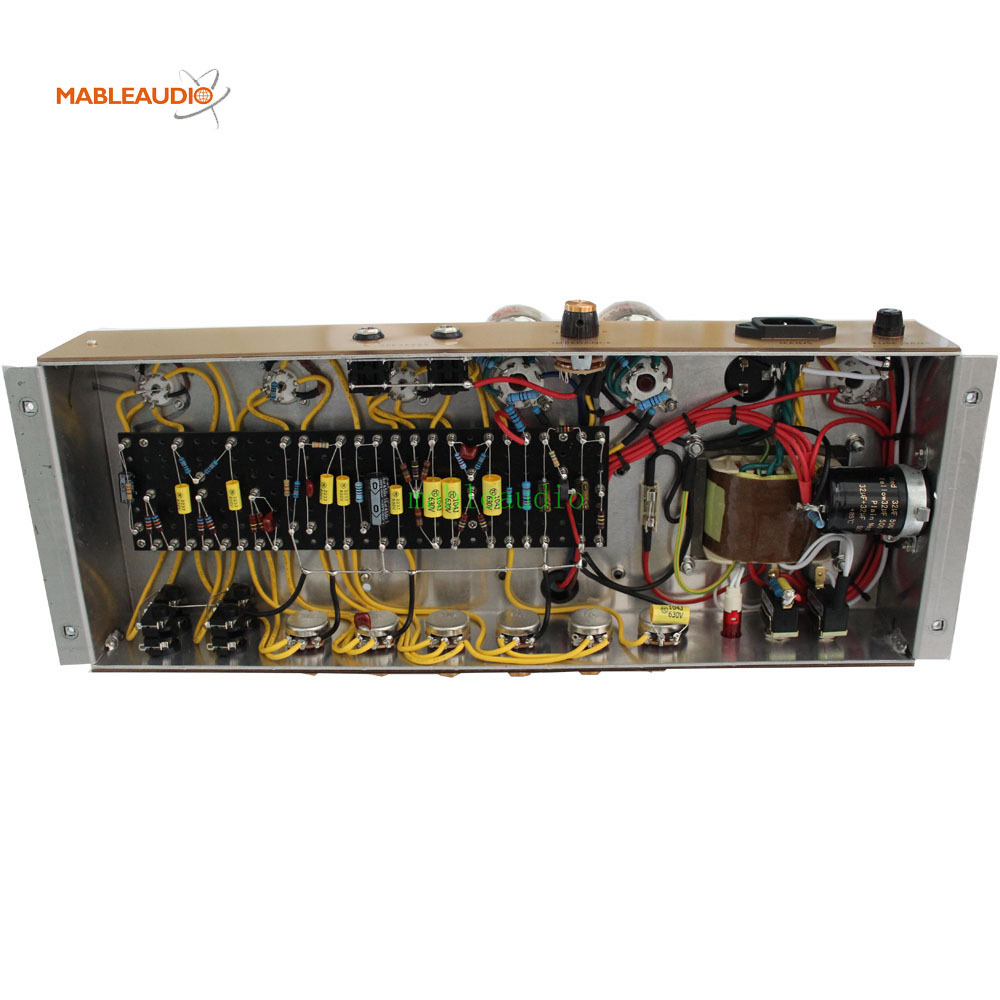

It’s the GZ34 rectifier that helps create the sublime output stage compression and clean sustain associated. To make the JTM45 as authentic as possible, we have used original thickness, original pitch matrix, point to point tag boards.
FEATURES AND SPECS
RANGE HANDWIRED
TECHNOLOGY VALVE
CHANNELS 2
ELECTRONICS
WATTAGE 35W
INPUTS 2 x 2
Controls Norma Volume, Volume, Bass, Mids, Treble and Presence
SPEAKERS
N/A
VALVES
PRE AMP VALVES 3 x Psvane 12AX7
POWER AMP VALVES 1 x JJ GZ34 or Svotek 5Y3GT or 5AR4 , 2 x Psvane 5881
DIMENSIONS
WEIGHT (KG) 12
DIMENSIONS in mm(W x H x D) 610 x 225 x 212
